| SPECIFICATIONS | |
|---|---|

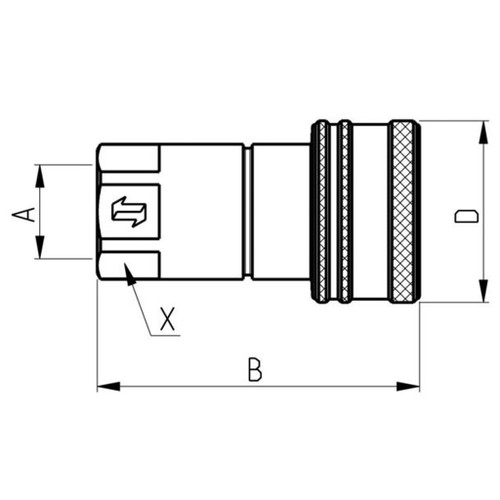

| Description | 3/8" BSP Standard Female Quick Release Coupling |
| (A) Female Thread | 3/8" BSP |
| Flow Rate | 30 Litres Per Minute |
| Max. Working Pressure | 300 Bar |
| (B) Socket Length | 57 mm |
| (D) Diameter Female Part | 32 mm |
| (X) Wrench Size | 24 mm |
| Shut-off System | Poppet Valve |
